Description

Features

• Memory bank saves speed & temperature settings for easy operation.
• Factory preset speeds and temperature settings for laminating with common films.
• Film counter tracks laminator usage.
• Hand held slitter with convenient machine storage.
• Adjustable feed guide assures exact lamination.
• Protective safety shield.
• Key switch prevents unauthorized use of laminator.

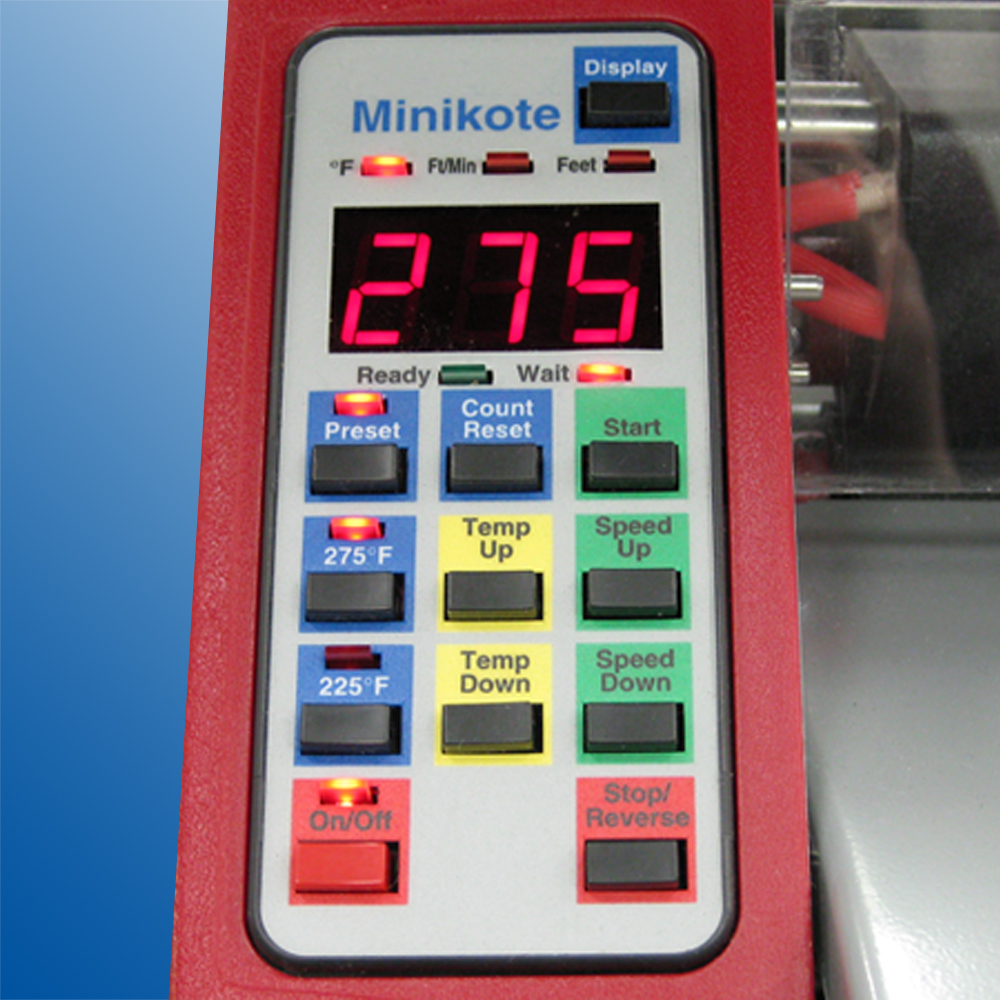

• Digital display with temperature, speed, and usage counter readouts.
• U/L listed.

Specifications

• Working Width: 27″
• Laminator Width: 34″
• Height: 15″
• Depth(with feed tray): 20″
• Net Weight: 66 lbs.
• Shipping Weight: 86 lbs.
• Speed: 0-9.5 fpm
• Electrical Requirements: 120V AC 60Hz 1400w
• Standard Core: 1″
• Film Accommodation: 1.5 Mil & 3 Mil (Max supply roll 1000′ @ 1.5 Mil)

Click here to download Minikote (G2) sales literature
Click here to download the Minikote threading diagram

Minikote Laminator Video:
